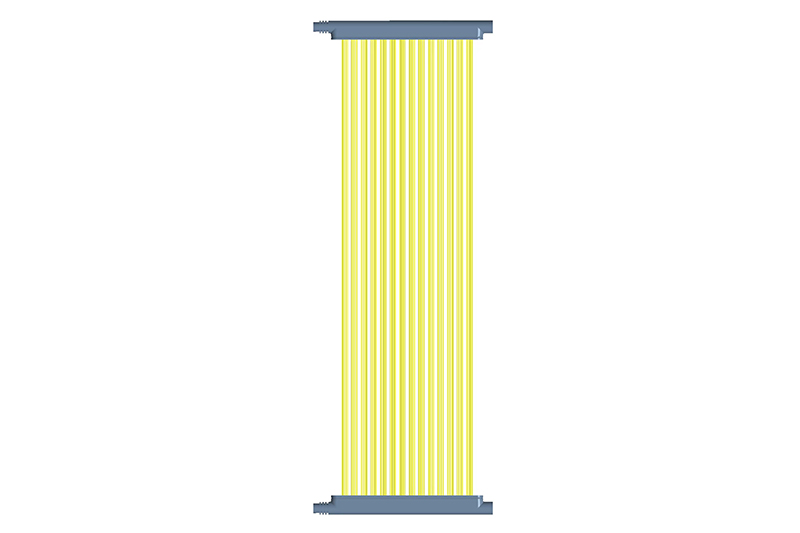

Hollow Fiber MBR Membrane

Request a quote

Features

High Filtration Precision
The hollow fiber membrane is engineered with a pore size of 0.1μm, which helps achieve high precision filtration, thereby producing high quality and clear water.
No Sludge Cake and Pore Blockage
The MBR membranes are cleaned continuously by air flushing, significantly decreasing membrane blockage caused by sludge that is attached to the membrane pores.
Permanent Hydrophilicity
Through special hydrophilic treatment, PVDF hollow fiber membranes are featured by permanent hydrophilicity. High water flux can be guaranteed even if the transmembrane pressure difference is relatively low.
Easy Cleaning
The hollow fiber MBR membrane can be cleaned by using multiple methods, such as backwashing, air flushing and chemical cleaning to efficiently remove contaminants.
Excellent Chemical Resistance
The PVDF hollow fiber membrane has excellent resistance to sodium hypochlorite, acid and alkali, especially alkali resistance.

Parameters

MBR Membrane Model		MLD-1010	MLD-1013		MLD-1520	MLD-1525		MLD-2030
Membrane specifications	Membrane length	815mm	815mm		1510mm	1535mm		2000mm
	Membrane width	571mm	571mm		571mm	571mm		571mm
	Water collecting pipe end	OD32 UPVC	OD32 UPVC		OD32 UPVC	OD32 UPVC		OD32 UPVC
	Weight of membrane group (wet)	5kg	6kg		9kg	11kg		18kg
	Effective membrane area	10m²	12.5m²		20m²	25m²		30m²
Membrane parameters	Membrane material	Polyvinylidene fluoride (PVDF)
	Water collecting pipe material	ABS
	Adhesive	Epoxy resin, polyurethane
	Pore size	< 0.1μm
	Fiber ID/OD	0.6/1.2mm
	Effluent turbidity	< 1 NTU
	Effluent suspended solids	< 1mg/L
	Lifetime	1-3 years
	Filtration	External pressure, pump suction dead-end filtration
Operational parameters	Design flux	10-25 L/㎡·h (reference only)
	Aeration air flow rate	2-4Nm³/h per membrane group		3-6Nm³/h per membrane group			5-8Nm³/h per membrane group
	Transmembrane pressure difference	10-60 kPa
	Sludge concentration	< 15000mg/L
	Working temperature	5-45℃
	pH value	210
	Water production cycle	Water production: 9-12 minutes Relaxation: 2 minutes
	Membrane cleaning agent	Sodium hypochlorite, hydrochloric acid, citric acid
	Chemical cleaning cycle	6-12 months
	Chemical cleaning agent	Hydrochloric acid, sodium hydroxide
Notes: all the parameters in this table are only for user's reference for the applications of wastewater treatment. We are able to custom manufacture membranes with specific parameters according to customer's requirements for flexible usage.
