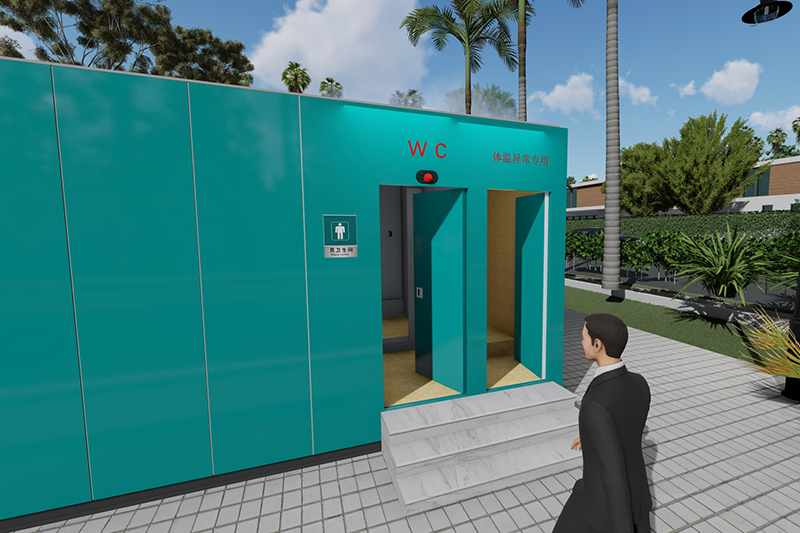

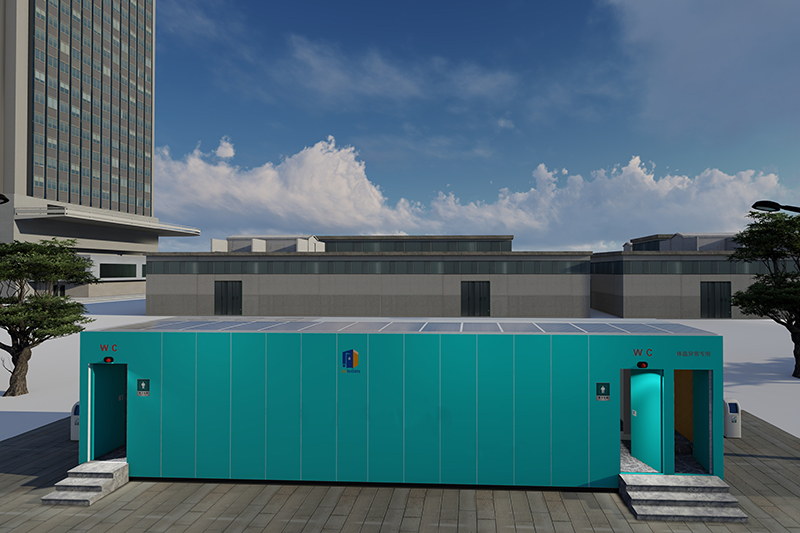

Portable Ablution Block / Container Toilet Block
Request a quote

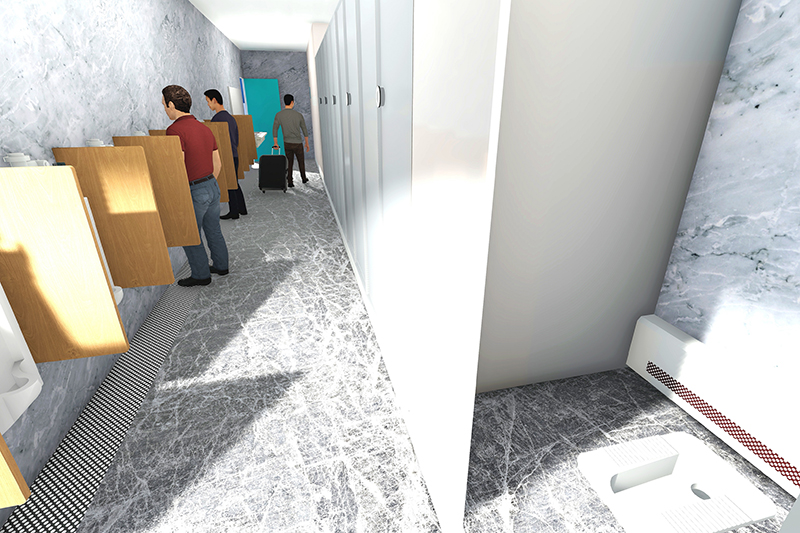

With its professional expertise and rich experience verified during years of water treatment equipment production, Skyview has incorporated a combination of resources from three subsidiaries and successfully developed integrated container toilet block. This portable toilet block is a kind of self-contained public sanitary facilities combining the basic functions of traditional mobile toilet with water treatment and recycling functions. Designed with ergonomics in mind, our portable ablution and toilet block can be built in various configurations with expandable functions to meet your individual demands.
Applications
- Tourist attractions, plazas, parks, streets;
- Communities, construction sites, mining sites;
- Stations, docks, expressway service areas, airports;
- Densely settled areas, bustling commercial streets;
- Water-stressed regions;
Features
- The ablution block is made with robust steel structure, and exterior surface is cladded with eco-friendly material. All internal parts of the container toilet are easy to assemble and disassemble, resulting in significantly shortened installation cycle. When any city construction planning adjustments are required, these ablution blocks can be easily transported to the desired site.
- Sewage treatment system allows for water recycling and reuse, fully complying with environmental protection regulations.
Parameters
| Dimensions | 9000*3000*3000 (customizable) | The appearance and color can be configured according to user's preferences and application needs. |
| Type | Container | |
| Color | Blue and white (selectable) | |
| Power supply | Utility power 220V/50Hz Solar power | It is possible to select either one, or both |
| Flushing | Infrared sensor automatic flushing + pedal flushing | Optional |
| Working temperature | -40℃~50℃ | |
| Decorative materials | Floor: non-slip aluminum alloy plate Toilet partitions: aluminum honeycomb panel, fireproof, corrosion resistant and anti-collision | Optional |
| Toilet Internals | ||
| Hand washing area | Two stainless steel / ceramic hand wash basins, one mirror and one soap dispenser | |
| Urinal area (male) | Two stainless steel / ceramic standing urinals Size: 600*600*1500 (urinal divider height) | |

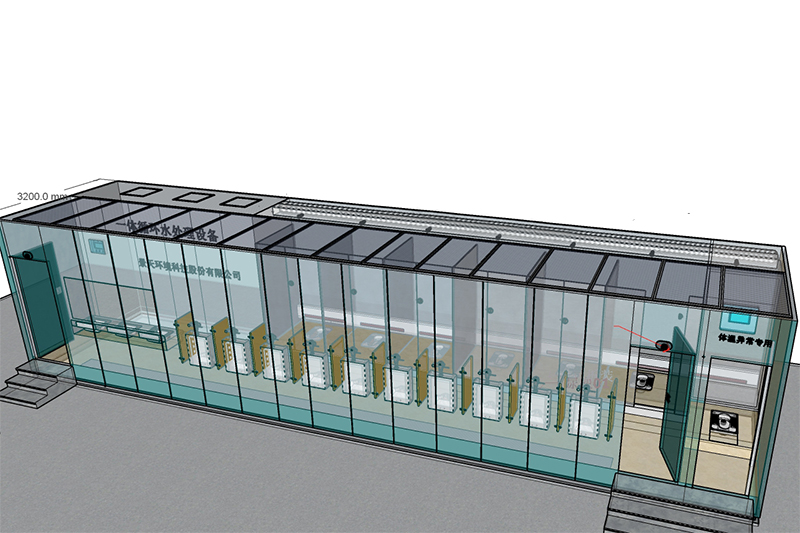

| Squatting area | Male toilet: 9 separate toilet cubicles (dimensions 1020.5*1100*2173) Female toilet: 10 separate toilet cubicles (dimensions 1020.5*1100*2173) | |
| Lighting system | 1. Coupled with motion sensor for human detection, ambient light sensor turns lights on when a person is present in the toilet block and turns off after person leaves, and it can automatically control the brightness and duration according to the ambient lighting condition. 2. Equipped with intelligent control unit for lighting time, remote control of lighting time during the day and at night. 3. General lighting, the lights are turned on and off manually. | Optional |
| Basic disinfection system | 1. UV disinfection: the UV disinfection unit is configured at each toilet cubicle, the intelligent control allows it to automatically disinfect when no one is in the toilet. 2. Automatic hand sanitizer: it is located at toilet entrance or hand washing area, preventing the spread of disease caused by touching contaminated objects. | Optional |
| Deep disinfection system | Spraying disinfection unit is equipped at each toilet cubicle. The disinfection is implemented in the early morning hours, and the warning light at the toilet entrance will be activated during the disinfection. | Optional |

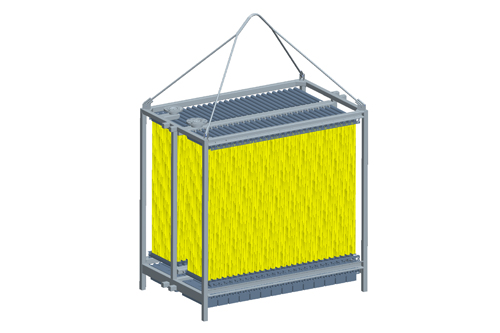

| Sewage treatment system | This system consists of anaerobic zone, aerobic + MBR membrane unit, UV disinfection and clean water tank. By using sewage treatment system, the treated water can meet the reuse standards for flushing. | |
| Automatic floor cleaning system | Automatic water sprinkling unit is installed for floor cleaning through a timing device, each cleaning cycle lasts 15 minutes. And the ventilation system will operate for floor drying after the completion of the cleaning. | |
