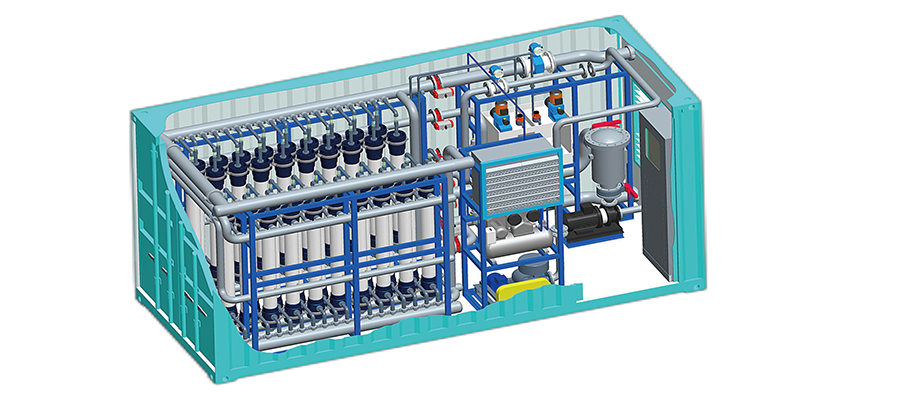

Containerized CMF Water Purification System Mobile Water Treatment Plant with Continuous Membrane Filtration
During continuous membrane filtration (CMF) water treatment, the filtration, separation and purification of raw water is achieved by pre-treatment unit and ultrafiltration (UF) membrane, and driven by a defined pressure. The continuous membrane filtration systems have a wide variety of water purification applications for tap water, ground water, surface water and well water by removal of solids and bacteria, as well as pre-treatment for reverse osmosis systems to lower the turbidity of wastewater.
- Applications
- Features
- Parameters
- Models
- Configurations
- Customization
- Process
- Tap water purification for large-scale mining companies;
- Tap water purification for rural water supply;
- Alternative water resource for municipal use during the dry season;
- Wastewater treatment for construction sites;
- Drinking water supply during an emergency or natural disaster;
- Pre-treatment of water supply for RO plants;
- Exclusive cleaning method of filtration membranes, both aeration and chemical cleaning are performed, ensuring extremely low energy consumption;
- One-stop-shop water treatment solution eliminates the added expense of civil works, the containerized water treatment system only needs to be connected to power and water supply, providing less space and low investment cost;
- The containerized CMF water purification plant is supplied with automatic control system allowing for easy operation and remote monitoring, thus achieving unattended operation except for routine performance inspection and mechanical parts maintenance.
| Raw Water Parameters | |
| Water source | River water, lake water, groundwater |
| PH | 2-12 |
| Turbidity | ≤300 |
| Max. particle size | ≤0.55mm |
| FOG content (fat, oil, and grease) | ＜2mg/L |
| Chlorine residuals | ＜200mg/L |
| COD | ＜200mg/L |
| SS | ＜100mg/L |
| Treated Water Parameters | |
| TSS | ＜1mg/L |
| SDI | ＜3 |
| Turbidity | ＜0.1NTU |
| Coliform organisms | Non |
| Operational Parameters | |
| Filtration | Dead-end filtration (also known as batch filtration) |
| Cleaning | Air flushing |
| Working temperature | 5-45°C |
| Working pressure | 0.1-0.2Mpa |
| Cleaning cycle | 20-60min (regular membrane cleaning by air flushing is essential for increasing membrane service life) |
| Model | CMF-2000 | CMF-2500 | CMF-3000 | CMF-3500 | CMF-4000 |
| Production | 2000m3 /d | 2500m3 /d | 3000m3 /d | 3500m3 /d | 4000m3 /d |
| Inlet | DN150 | DN200 | DN250 | DN250 | DN300 |
| Container size | ISO 20ft(GP) | ISO 40ft(GP) | ISO 40ft(GP) | ISO 40ft(GP) | ISO 40ft(GP) |
| Power | 380V/50Hz/12KW | 380V/50Hz/17KW | 380V/50Hz/22KW | 380V/50Hz/25KW | 380V/50Hz/30KW |
| Weight | 6T | 8T | 8.5T | 9T | 10T |
| Standard | Optional |
| Standard container 20GP/40GP | High cube container 20HQ/40HQ |

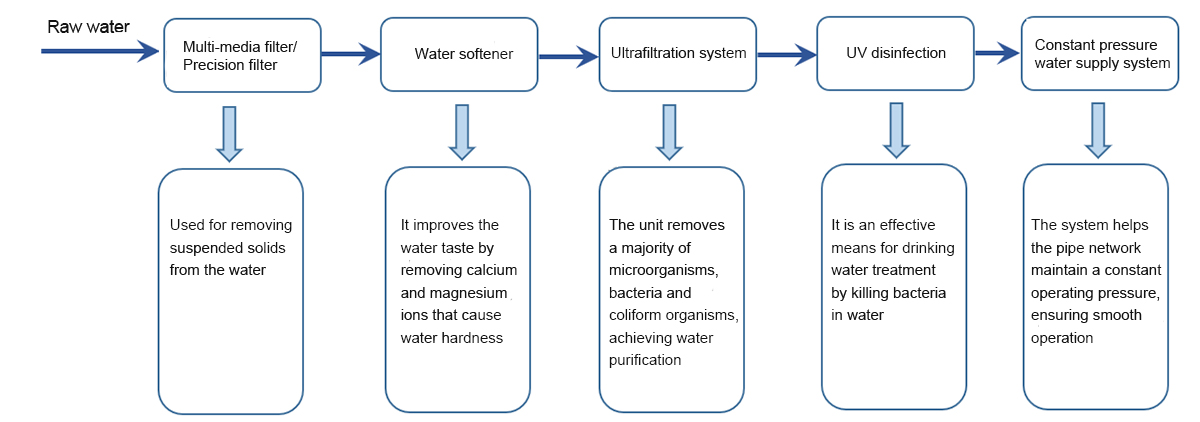

| Standard module configurations, multi-media filtration (MMF) pretreatment + CMF ultrafiltration | Can be configured with water softening system, enhanced flocculation filtration system, post-treatment UV disinfection system, constant pressure water supply system, and other modules |
| Fully automatic PLC control system | Remote control, system maintenance & upgrade service |
| Container can be equipped with a set of wheels for easy transportation |
In most instances, a standard integrated wastewater treatment system can not tackle all challenges faced by us. To address this situation and acute market needs, Skyview has a database storing a variety of modules of various wastewater treatment technologies. Our design team of seasoned experts will work intimately with customer to develop a solution by invoking specific modules from the database, to accommodate the working conditions of customer's site. The uniform appearance and strong comprehensive complementarity distinguish your containerized CMF water purification plant, which is capable enough of handling the unique problems associated with your water treatment applications.
CMF Process
Continuous membrane filtration (CMF) is a pressure-driven separation process that utilizes ultrafiltration membrane to reject suspended solids whose molecular weight is relatively high, while allowing water and small specific compounds to pass through membrane pores. The pore size of CMF membranes has a rejection capability of molecular weight ranging from 3*10000 to 1*10000. With removal of large quantities of organic compounds and colloids, CMF water treatment system can produce high quality purified water.
