Containerized MBR Wastewater Treatment Plant Sewage Treatment System with Membrane Bioreactor

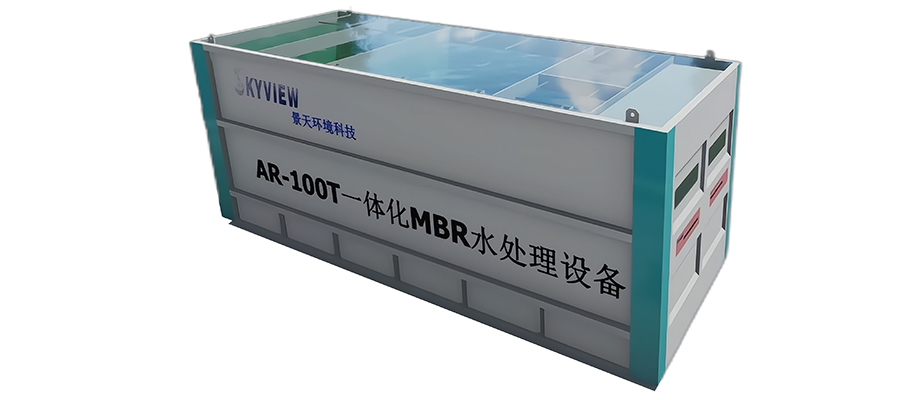

Containerized MBR wastewater treatment plant is an innovative mobile wastewater treatment system based on membrane bioreactor (MBR) technology that combines membrane filtration with biological treatment.
The containerized membrane bioreactor utilizes ultrafiltration (UF) membranes to transform large amount of various wastewater or sewage to high quality and clear water, and eliminates the requirement for membrane changing. The containerization design of the industrial ultrafiltration system enables it to be easily transported and setup. Every containerized water treatment system we provide is engineered and built to suit your specific requirements and allow for optimum adaptation to the volume of water to be treated.
- Applications
- Features
- Parameters
- Models
- Configurations
- Customization
- Process
- Municipal wastewater treatment and reclaimed water reuse for temporary construction sites;
- Organic wastewater treatment for airports, stations, docks, etc.;
- Industrial wastewater treatment for food & beverage industry;
- Agricultural wastewater treatment for irrigation;
- Residential and commercial wastewater treatment (e.g. living apartments, offices, shopping centers, hospitals, camps, mines, industrial parks);
- High-efficiency organic matter removal, high-quality effluent
Coupled with hydrophilic high-efficiency denitrification fillers and high grade membranes, MBR system can ensure high wastewater flow and outstanding treated water quality. - Better integrated construction
This industrial wastewater treatment plant can be constructed using multiple containers in parallel, suitable for underground, half buried or above-ground installation. The parallel-connected container sewage treatment plant is featured by easy installation and high reliability, with no need for insulation. - Fully automatic control
The containerized MBR plant is supplied with central control system allowing for ease of operation and remote monitoring, thus achieving unattended operation except for routine performance inspection and mechanical parts maintenance.
| Raw Wastewater Parameters | |
| Water source | Municipal wastewater, residential sewage, catering wastewater, industrial wastewater, mining wastewater, chemical wastewater |
| PH | 2-12 |
| Max. sludge concentration | 15000ppm |
| Max. particle size | ≤2mm |
| FOG content (fat, oil, and grease) | ＜2mg/L |
| BOD | ＜400mg/L |
| NH3-N | ＜50mg/L |
| Treated Water Parameters | |
| TSS | ＜2mg/L |
| BOD | ＜10mg/L |
| Turbidity | ＜0.5NTU |
| Coliform organisms | 100/100ml |
| NH3-N | ＜10mg/L |
| Operational Parameters | |
| Filtration | Negative pressure filtration |
| Cleaning | Air flushing, backwashing |
| Working temperature | 5-45°C |
| Suction pressure | ＜0.05Mpa |
| Max. transmembrane pressure (TMP) | 0.05Mpa |
| Model | JT-50MBR | JT-100MBR | JT-150MBR | JT-200MBR |
| Production | 50m3/d | 100m3/d | 150m3/d | 200m3/d |
| Inlet | DN50 | DN50 | DN65 | DN65 |
| Container size | ISO 20ft(HC) | ISO 40ft(HC) | ISO 20+40ft(HC) | ISO40ft(HC)×2 |
| Power | 380V/50Hz/8kW | 380V/50Hz/10kW | 380V/50Hz/18kW | 380V/50Hz/20kW |
| Weight | 5T | 7T | 12T | 14T |
| Standard | Optional |
| Standard container 20GP/40GP | High cube container 20HQ/40HQ |
| In compliance with shipping & export requirements | |
| AO and A2O standard biological treatment unit | Enhanced phosphorus removal using chemical treatment unit, air flotation unit, ozone unit |
| Fully automatic PLC control system | Remote control, system maintenance & upgrade service |
In most instances, a standard integrated wastewater treatment system can not tackle all challenges faced by us. To address this situation and acute market needs, Skyview has a database storing a variety of modules of various wastewater treatment technologies. Our design team of seasoned experts will work intimately with customer to develop a solution by invoking specific modules from the database, to accommodate the working conditions of customer's site. The uniform appearance and strong comprehensive complementarity distinguish your containerized MBR wastewater treatment plant, which is capable enough of handling the unique problems associated with your water treatment applications.

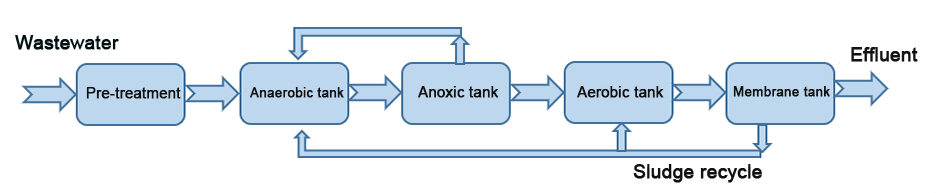

MBR Process
MBR is generally an efficient water treatment process integrating the biological process with membrane filtration. Skyview has developed integrated systems (A2O+MBR) that have the ability to treat wastewater for various industries such as municipal, medical, printing & dyeing, food processing, pulp & paper, metalworking and more. Through setting of parameters including sludge retention time, sludge recycling rate and sludge concentration limit values, the MBR wastewater treatment system can be flexibly applied in different applications to achieve excellent quality effluent.
