RO Membrane Modules

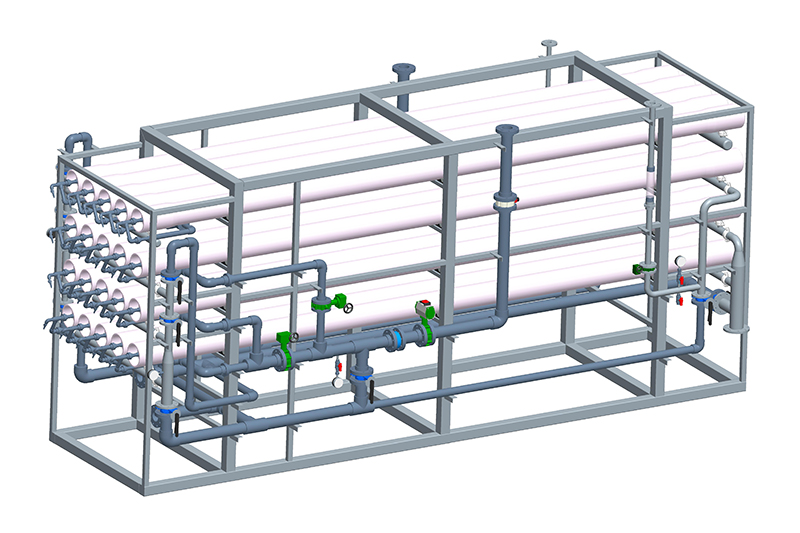

RO membrane module is used as core water filtration unit in reverse osmosis (RO) water purification system that is suitable for various water treatment applications, typically seawater desalination and wastewater recovery. Same as the CMF module, reverse osmosis module requires external pressure to produce high purity water by forcing water permeate the membrane that filters out salts and other dissolved solids. RO membrane module consists of pressure vessels (membrane housing) where reverse osmosis membrane is placed, and other components like module frame, pipe and valve. In seawater desalination plants, RO water filtration system is usually configured with two-stage or multi-stage separation process to produce purified water that is compliant with national standards for drinking water safety.
- Extremely low operating pressure, high water production rate;
- High desalination rate under high flow velocity;
- High mechanical strength, long service life;
- Excellent resistance to chemical or biological contamination;
- Difficult to be affected by temperature, pH and other different factors;
SW3-8040 Seawater Desalination RO Membrane | ||
Model | ROSW318 | ROSW321 |
Processing capacity | 800m3/d | 1000m3/d |
Desalination rate | 99.50% | 99.50% |
Dimensions | 1280*4650*2800 | 1280*4650*3300 |
FR-8040 Antifouling RO Membrane (high salt rejection) | ||
Model | ROFR318 | ROFR321 |
Processing capacity | 1500m3/d | 1700m3/d |
Desalination rate | 99.50% | 99.50% |
Dimensions | 1280*4650*2800 | 1280*4650*3300 |
PA2-8040 Low-Pressure RO Membrane | ||
Model | ROPA218 | ROPA221 |
Processing capacity | 1500m3/d | 1700m3/d |
Desalination rate | 99.50% | 99.50% |
Dimensions | 1280*4650*2800 | 1280*4650*3300 |
PA3-8040 Ultra-Low-Pressure RO Membrane | ||
Model | ROPA318 | ROPA321 |
Processing capacity | 1800m3/d | 2100m3/d |
Desalination rate | 98% | 98% |
Dimensions | 1280*4650*2800 | 1280*4650*3300 |
As a specialist water treatment system manufacturer, Skyview has manufactured and installed a variety of quality water treatment equipment for nearly 10 years. Our water filtration system can be built in a container for mobile water treatment and water purification applications, satisfying your specific needs for both industrial and commercial water treatment.
Discover our product catalog above to find more information on the water treatment system and related products of your interest.
