CMF Membrane Modules
Request a quote

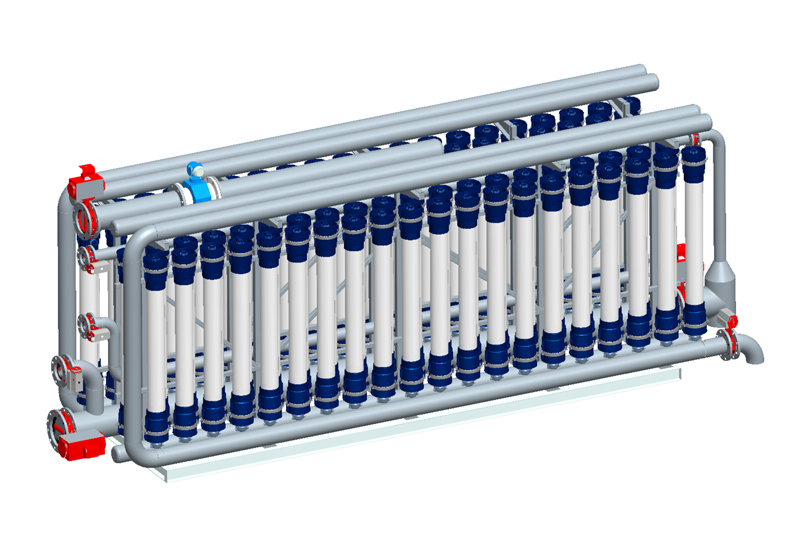

CMF membrane modules are the key filtration unit of continuous membrane filtration (CMF) water treatment system, the water pump is used to extract filtered water and force it through membranes thereby achiving membrane filtration process. The basic components include microfiltration (MF) / ultrafiltration (UF) membranes that are located in cylindrical pressure vessels (membrane housing), as well as frame and valve. These membrane elements are then configured with cleaning unit, adding unit, drive and control system to form a complete closed-loop continuous membrane filtration system.
- Features
- Parameters
- Models
Features
- Small footprint, low cost for civil works;
- Stable operation, can accommodate various water quality;
- Low energy consumption, rational and affordable operation and maintenance expenses
Parameters
| Raw Water Parameters | |
| Water source | River water, lake water, groundwater, tap water, seawater |
| PH | 2-12 |
| Turbidity | ＜100NTU |
| Max. particle size | ≤0.55mm |
| FOG content (fat, oil, and grease) | ＜2mg/L |
| Chlorine residuals | ＜200mg/L |
| SS | ＜100mg/L |
| Treated Water Parameters | |
| TSS | ≤1mg/L |
| SDI | ＜3 |
| Turbidity | ＜0.1NTU |
| Coliform organisms | Non |
| Operational Parameters | |
| Filtration | Dead-end filtration, cross-flow filtration |
| Cleaning | Air flushing, backwashing |
| Working temperature | 5-45°C |
| Suction pressure | 0.1-0.2Mpa |
| Cleaning cycle (Air flushing) | 20-60min |
Options of CMF Membrane Modules
| Model | JT-UF21-8 | JT-UF21-12 | JT-UF21-16 | JT-UF21-20 | JT-UF21-100 |
| Production | 380m3/d | 570m3 /d | 780m3 /d | 960m3 /d | 4800m3 /d |
| Outlet | DN65 | DN80 | DN100 | DN125 | DN250 |
| Container size | 1480*1000*2400 | 1760*1000*2400 | 2400*1000*2400 | 1270*1000*2400 | 7340*1500*2400 |
| Applicable number of people (100L/person/day) | 3500-3800 | 5400-5700 | 7500-7800 | 9300-9600 | 45000-48000 |
